    LT3756IMSE-1, Linear Technology, Integrated Circuits (ICs)~PMIC - LED Drivers, IC LED DRIVER CTRLR DIM 16MSOP

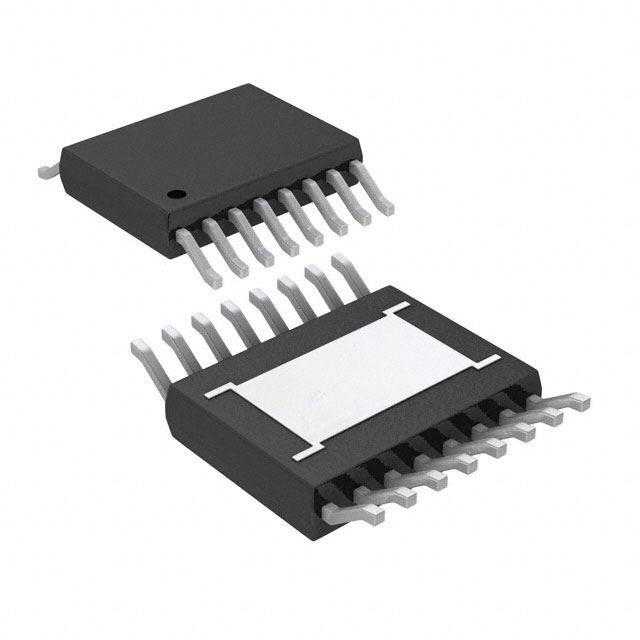

    LT3756IMSE-1 Images
    LT3756IMSE-1 Images
    Product Attributes：
  • Part Number: LT3756IMSE-1
  • Manufacturer: Linear Technology ( Now Linear Technology is part of Analog Devices )
  • Description: IC LED DRIVER CTRLR DIM 16MSOP
  • Category: Integrated Circuits (ICs)~PMIC - LED Drivers
  • LT3756IMSE-1 Datasheet (PDF)
  • Order with confidence, there are no lead times for in-stock products.
    • For Linear Technology, you may also be interested in the following:
    LTC2945IUD-1#TRPBF
    LTC2945IUD-1#TRPBF
    WIDE RANGE I2C POWER MONITOR
    LTC6400CUD-20
    LTC6400CUD-20
    IC ADC DRIVER 16QFN
    LTC2640AITS8-HM12
    LTC2640AITS8-HM12
    IC DAC 12BIT V-OUT TSOT23-8
    LTC1594LCS
    LTC1594LCS
    IC ADC 12BIT SAR 16SOIC
    LT6654BMPS6-2.048
    LT6654BMPS6-2.048
    IC VREF SERIES 0.1% TSOT23-6
    LT8391IFE
    LT8391IFE
    IC LED DRIVER CTRLR 28-TSSOP
    Product Specifications：
  • MfrPart.: LT3756IMSE-1#PBF
  • Mfr: Linear Technology (Now Part of Analog Devices Inc.)
  • Description: IC LED DRIVER CTRLR DIM 16MSOP
  • Product Category: Integrated Circuits (ICs)~PMIC - LED Drivers
  • Package: Tube
  • Series: -
  • PartStatus: Active
  • Type: DC DC Controller
  • Topology: Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost)
  • InternalSwitch(s): No
  • NumberofOutputs: 1
  • Voltage-Supply(Min): 6V
  • Voltage-Supply(Max): 100V
  • Voltage-Output: 100V
  • Current-Output/Channel: -
  • Frequency: 100kHz ~ 1MHz
  • Dimming: Analog, PWM
  • Applications: -
  • OperatingTemperature: -40°C ~ 125°C (TJ)
  • MountingType: Surface Mount
  • Package/Case: 16-TFSOP (0.118, 3.00mm Width) Exposed Pad
  • LT3756IMSE-1 | Linear Technology | NHE Electronics
    • LT3756IMSE-1 were obtained directly from authorized Linear Technology distributors and other trusted sources throughout the world.
