    LTC3775IMSE, Linear Technology, Integrated Circuits (ICs)~PMIC - Voltage Regulators - DC DC Switching Controllers, IC REG CTRLR BUCK 16MSOP

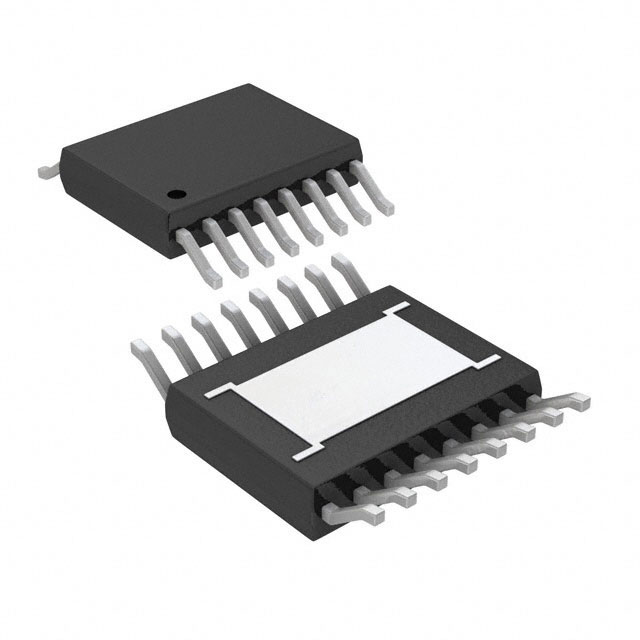

    LTC3775IMSE Images
    LTC3775IMSE Images
    Product Attributes：
  • Part Number: LTC3775IMSE
  • Manufacturer: Linear Technology ( Now Linear Technology is part of Analog Devices )
  • Description: IC REG CTRLR BUCK 16MSOP
  • Category: Integrated Circuits (ICs)~PMIC - Voltage Regulators - DC DC Switching Controllers
  • LTC3775IMSE Datasheet (PDF)
  • Order with confidence, there are no lead times for in-stock products.
    • For Linear Technology, you may also be interested in the following:
    LTC4224IDDB-2
    LTC4224IDDB-2
    IC HOT SWAP CTRLR GP 10DFN
    LT3029IDE
    LT3029IDE
    IC REG LINEAR POS ADJ 16DFN
    LT6703CDC-3
    LT6703CDC-3
    IC COMPARATOR 400MV REF 3-DFN
    LT1303CN8-5
    LT1303CN8-5
    IC REG BOOST 5V 750MA 8DIP
    LTM8027IV
    LTM8027IV
    DC DC CONVERTER 2.5-24V
    LT1039CSW
    LT1039CSW
    IC TRANSCEIVER FULL 3/3 18SOIC
    Product Specifications：
  • MfrPart.: LTC3775IMSE#TRPBF
  • Mfr: Linear Technology (Now Part of Analog Devices Inc.)
  • Description: IC REG CTRLR BUCK 16MSOP
  • Product Category: Integrated Circuits (ICs)~PMIC - Voltage Regulators - DC DC Switching Controllers
  • Package: Tape & Reel (TR)
  • Series: PolyPhase®
  • PartStatus: Active
  • OutputType: Transistor Driver
  • Function: Step-Down
  • OutputConfiguration: Positive
  • Topology: Buck
  • NumberofOutputs: 1
  • OutputPhases: 1
  • Voltage-Supply(Vcc/Vdd): 4.5V ~ 38V
  • Frequency-Switching: 250kHz ~ 1MHz
  • DutyCycle(Max): 90%
  • SynchronousRectifier: Yes
  • ClockSync: Yes
  • SerialInterfaces: -
  • ControlFeatures: Current Limit, Enable, Frequency Control, Soft Start
  • OperatingTemperature: -40°C ~ 125°C (TJ)
  • MountingType: Surface Mount
  • Package/Case: 16-TFSOP (0.118, 3.00mm Width) Exposed Pad
  • LTC3775IMSE | Linear Technology | NHE Electronics
    • LTC3775IMSE were obtained directly from authorized Linear Technology distributors and other trusted sources throughout the world.
