    LTC3814IFE-5, Linear Technology, Integrated Circuits (ICs)~PMIC - Voltage Regulators - DC DC Switching Controllers, IC REG CTRLR BOOST 16TSSOP
    LTC3814IFE-5 Images
    LTC3814IFE-5 Images
    Product Attributes：
  • Part Number: LTC3814IFE-5
  • Manufacturer: Linear Technology ( Now Linear Technology is part of Analog Devices )
  • Description: IC REG CTRLR BOOST 16TSSOP
  • Category: Integrated Circuits (ICs)~PMIC - Voltage Regulators - DC DC Switching Controllers
  • LTC3814IFE-5 Datasheet (PDF)
  • Order with confidence, there are no lead times for in-stock products.
    • For Linear Technology, you may also be interested in the following:
    LTC2856HMS8-2
    LTC2856HMS8-2
    IC TRANSCEIVER HALF 1/1 8MSOP
    LT1054LCS8
    LT1054LCS8
    IC REG CHARGE PUMP INV 8SOIC
    LTC1643LCGN
    LTC1643LCGN
    IC HOT SWAP CTRLR PCI 16SSOP
    LT1224CS8
    LT1224CS8
    IC OPAMP GP 1 CIRCUIT 8SO

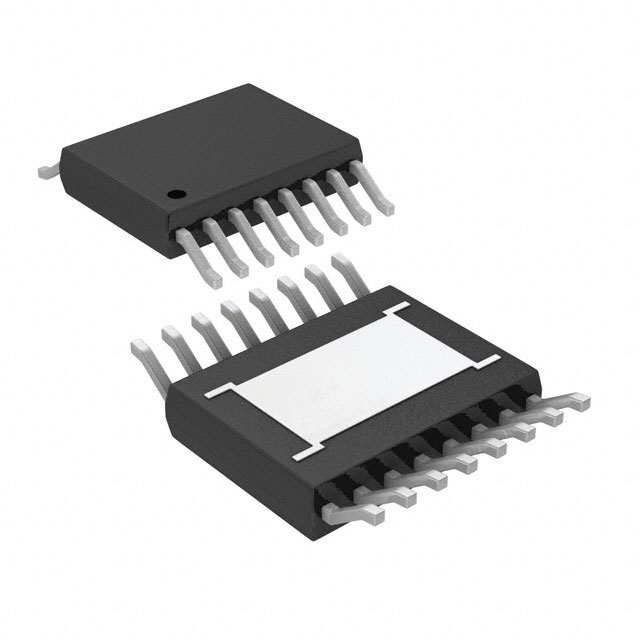

    LTC7804IMSE
    LTC7804IMSE
    LOW IQ SYNCHRONOUS BOOST CONTROL
    LT1460HCDC-2.5
    LT1460HCDC-2.5
    IC VREF SERIES 0.2%
    Product Specifications：
  • MfrPart.: LTC3814IFE-5#PBF
  • Mfr: Linear Technology (Now Part of Analog Devices Inc.)
  • Description: IC REG CTRLR BOOST 16TSSOP
  • Product Category: Integrated Circuits (ICs)~PMIC - Voltage Regulators - DC DC Switching Controllers
  • Package: Tube
  • Series: -
  • PartStatus: Active
  • OutputType: Transistor Driver
  • Function: Step-Up
  • OutputConfiguration: Positive
  • Topology: Boost
  • NumberofOutputs: 1
  • OutputPhases: 1
  • Voltage-Supply(Vcc/Vdd): 4.35V ~ 14V
  • Frequency-Switching: -
  • DutyCycle(Max): -
  • SynchronousRectifier: Yes
  • ClockSync: No
  • SerialInterfaces: -
  • ControlFeatures: Enable, Power Good, Soft Start
  • OperatingTemperature: -40°C ~ 125°C (TJ)
  • MountingType: Surface Mount
  • Package/Case: 16-TSSOP (0.173, 4.40mm Width) Exposed Pad
  • LTC3814IFE-5 | Linear Technology | NHE Electronics
    • LTC3814IFE-5 were obtained directly from authorized Linear Technology distributors and other trusted sources throughout the world.
