    PIC16F684-E/P, Microchip Technology, Integrated Circuits (ICs)~Embedded - Microcontrollers, IC MCU 8BIT 3.5KB FLASH 14DIP

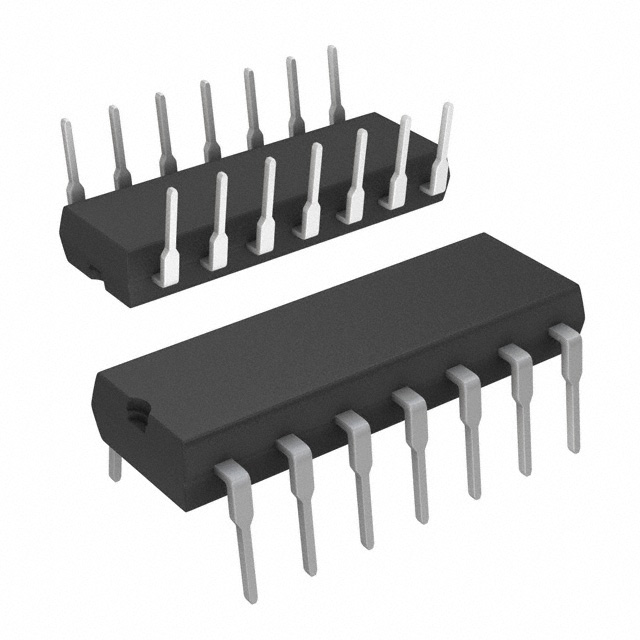

    PIC16F684-E/P Images
    PIC16F684-E/P Images
    Product Attributes：
  • Part Number: PIC16F684-E/P
  • Manufacturer: Microchip Technology
  • Description: IC MCU 8BIT 3.5KB FLASH 14DIP
  • Category: Integrated Circuits (ICs)~Embedded - Microcontrollers
  • PIC16F684-E/P Datasheet (PDF)
  • Order with confidence, there are no lead times for in-stock products.
    • For Microchip Technology, you may also be interested in the following:
    1N5307
    1N5307
    CURRENT REGULATOR DIODE
    ATMEGA128-16MNR
    ATMEGA128-16MNR
    IC MCU 8BIT 128KB FLASH 64QFN
    30KPA33AE3/TR13
    30KPA33AE3/TR13
    TVS DIODE 33VWM 58.5VC P600
    DSC1103CI2-106.2500T
    DSC1103CI2-106.2500T
    MEMS OSC XO 106.2500MHZ LVDS SMD
    MXLSMLG26A
    MXLSMLG26A
    TVS DIODE 26VWM 42.1VC SMLG
    DSC1001AE1-033.0000
    DSC1001AE1-033.0000
    MEMS OSC XO 33.0000MHZ CMOS SMD
    Product Specifications：
  • MfrPart.: PIC16F684-E/P
  • Mfr: Microchip Technology
  • Description: IC MCU 8BIT 3.5KB FLASH 14DIP
  • Product Category: Integrated Circuits (ICs)~Embedded - Microcontrollers
  • Package: Tube
  • Series: PIC® 16F
  • PartStatus: Active
  • CoreProcessor: PIC
  • CoreSize: 8-Bit
  • Speed: 20MHz
  • Connectivity: -
  • Peripherals: Brown-out Detect/Reset, POR, PWM, WDT
  • NumberofI/O: 12
  • ProgramMemorySize: 3.5KB (2K x 14)
  • ProgramMemoryType: FLASH
  • EEPROMSize: 256 x 8
  • RAMSize: 128 x 8
  • Voltage-Supply(Vcc/Vdd): 2V ~ 5.5V
  • DataConverters: A/D 8x10b
  • OscillatorType: Internal
  • OperatingTemperature: -40°C ~ 125°C (TA)
  • MountingType: Through Hole
  • Package/Case: 14-DIP (0.300, 7.62mm)
  • PIC16F684-E/P | Microchip Technology | NHE Electronics
